Dre Patient Monitor Trax with Printer
$300.00
Dre Patient Monitor Trax
Comes with everything you see in photos. Tested and functions as it should.
"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item."
General
- Display: 5.0 inch (Diagonal) color TFT
- Resolution: 800 Ã 3(RGB) Ã 480
- Trace: 2 waveforms
- Waveforms: PLETH, ETCO2
- Trend time: From 1 to 72 hours
- Indicator:
- Alarm Indicator
- Power indicator
- Pulse beep and alarm sound
NIBP
- Measuring Technology: Automatic oscillating measurement
- Cuff Inflating: <30s (0 ~ 300 mmH, standard adult cuff)
- Measuring Period: AVE<40s
- Mode: Manual, Auto, STAT
- Measuring Interval in AUTO Mode: 2 min ~ 4 hrs
- Pulse Rate Range: 30 bpm ~ 250 bpm
- Measuring Range: Adult
- SYS: 40 ~ 250 (mmHg)
- DIA: 15 ~ 200 (mmHg)
- Resolution: 1mmHg
- Pressure Accuracy: Maximum Mean error: ±5mmHg
- Maximum Standard deviation: 8mmHg
- Overpressure Protection: Adult Mode: 280(mmHg)
- Alarm Limit: SYS: 50 ~ 240 mmHg
- DIA: 15 ~ 180 mmHg
- Standards: Meets performance standards of ANSI/AAMI SP10:2002
SPO2
- ASpO2: Anti-motion SpO2
- SpO2% Range: 0 ~ 100%
- SpO2 Accuracy: ±2% (70 ~ 100%,non-motion)
- ±3% (70 ~ 100%, motion)
- Pulse Rate Range: 30-250 bpm
- Pulse Rate Accuracy: ±2 bpm(non-motion), ±3 bpm (motion)
- Alarm Upper-lower Limit: Upper limit 70 ~ 100%, Lower limit 70 ~ 100%

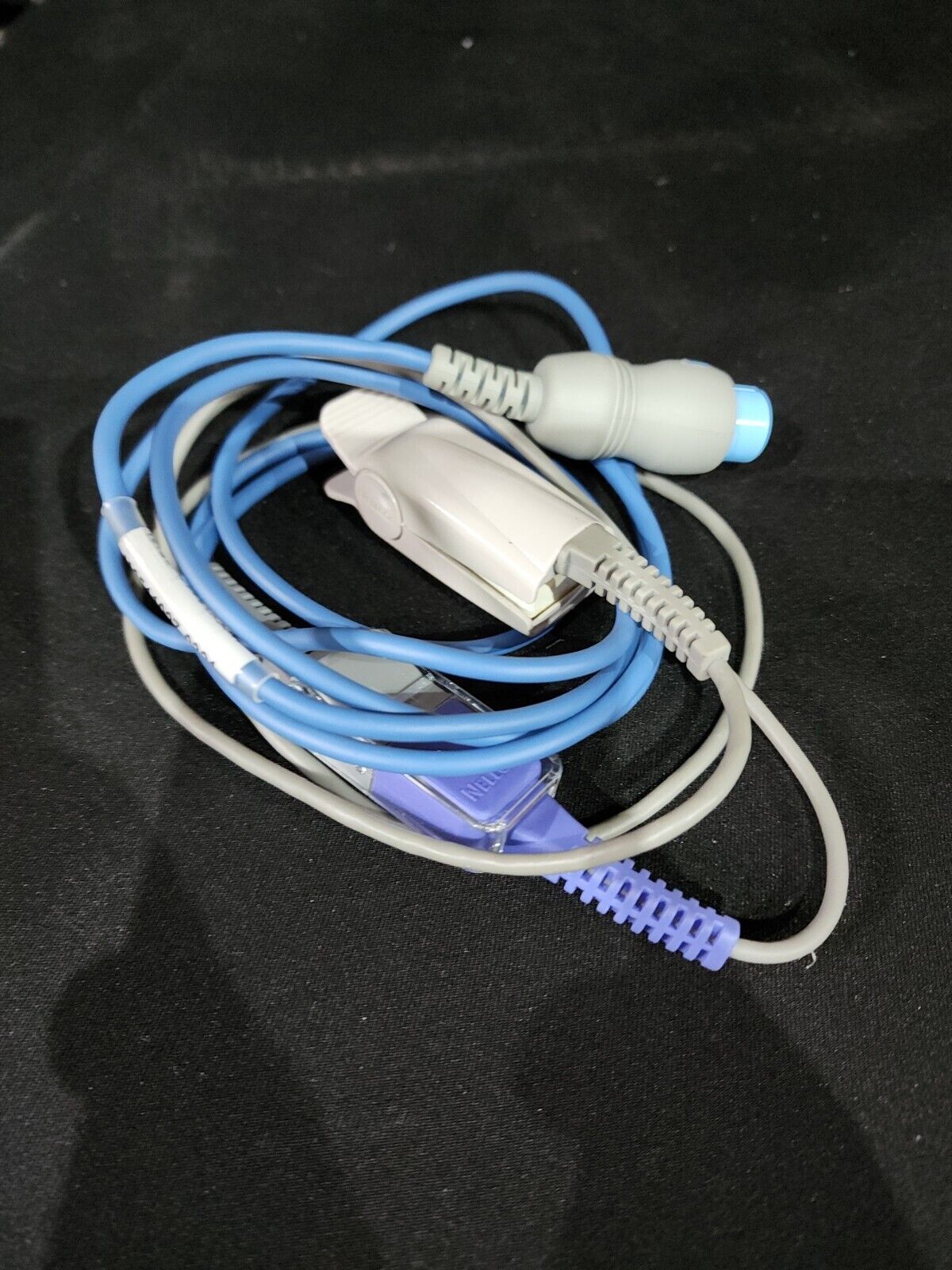

- SpO2 Probe: Red light LED wavelength: 660nm±5nm
- Infrared light LED wavelength: 940nm±10nm
- Standards: Meets performance standards of EN ISO 9919:2005
Rapid Temperature (Option)
- Temperature Measurement Range: 30°C to 43°C (86°F to 109°F)
- Typical Measurement Times
- Oral (Quick Mode):3-5 seconds (non-fever temps), 8-10 seconds (fever temps):
- (after insertion into measurement site):
- Oral (Standard Mode): 6-10 seconds
- Axillary Mode: 8-12 seconds
- Rectal Mode: 10-14 seconds
- Direct Mode (All Sites): 60-120 seconds
- Approx. 6000 temperature readings
- Standards: Meets performance standards of EN 12470-3:2000, ASTM E1112:2006
- Pulse Timer: 60 Second count with a "beep" at 15 seconds, 2 "beeps" at 30 seconds, 1 "beep" at 45 seconds, and 2 "beeps" at 60 seconds
- Patient Accuracy: A Standard Prediction Mode reading and a Direct Mode reading will differ by less than ±0.2°C (±0.4°F) on 98% of tested patients
- Batteries:
- Four "AA" Required.
- Standard IEC package size.
- Alkaline --1.5 Volt
EtCO2 (Option)
- Mode of Sampling: Sidestream or Mainstream
- Principle of Operation: Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts.
- CO2 measurement Range: 0 to 150 mmHg (0 to 19.7%, 0 to 20 kPa)
- CO2 Calculation Method: BTPS (Body Temperature Pressure Saturated)
- CO2 Resolution: 0.1mmHg (0-69mmHg), 0.25mmHg (70-150mmHg)
- CO2 Accuracy:
- 0 ~ 40 mmHg ± 2 mmHg
- 41 ~ 70 mmHg ± 5% of reading
- 71 ~ 100 mmHg ± 8% of reading
- 101 ~ 150 mmHg ± 10% of reading
- Above 80 breath per minute ± 12% of reading
- Sampling rate: 100Hz
- Respiration Rate: 2 ~ 150 bpm
- Respiration Rate accuracy: ±1 breath
- Response Time: <3 seconds -
- includes transport time and rise time
- Inspired CO2 measurement Range: 3 ~ 50 mmHg
- Standards: Meets performance standards of ISO/FDIS 21647:2004 (E), ASTM F1456-01, IEC/CDV 60601-2-55
Networking
- Wired Networking:
- Industry standard 802.11b/g wired network
- Frequency Range: 2.412 ~ 2.484 GHz
- Connected bedside number: Up to 16 bedside monitors
- Wireless Networking:
- Up to 100m indoors
- Industry standard 802.11b/g wireless
- Supports TCP/IP and UDP/IP Protocols
Power
- Source: External AC power or internal battery
- AC Power: 100 ~ 240VAC, 50/60Hz, 150VA

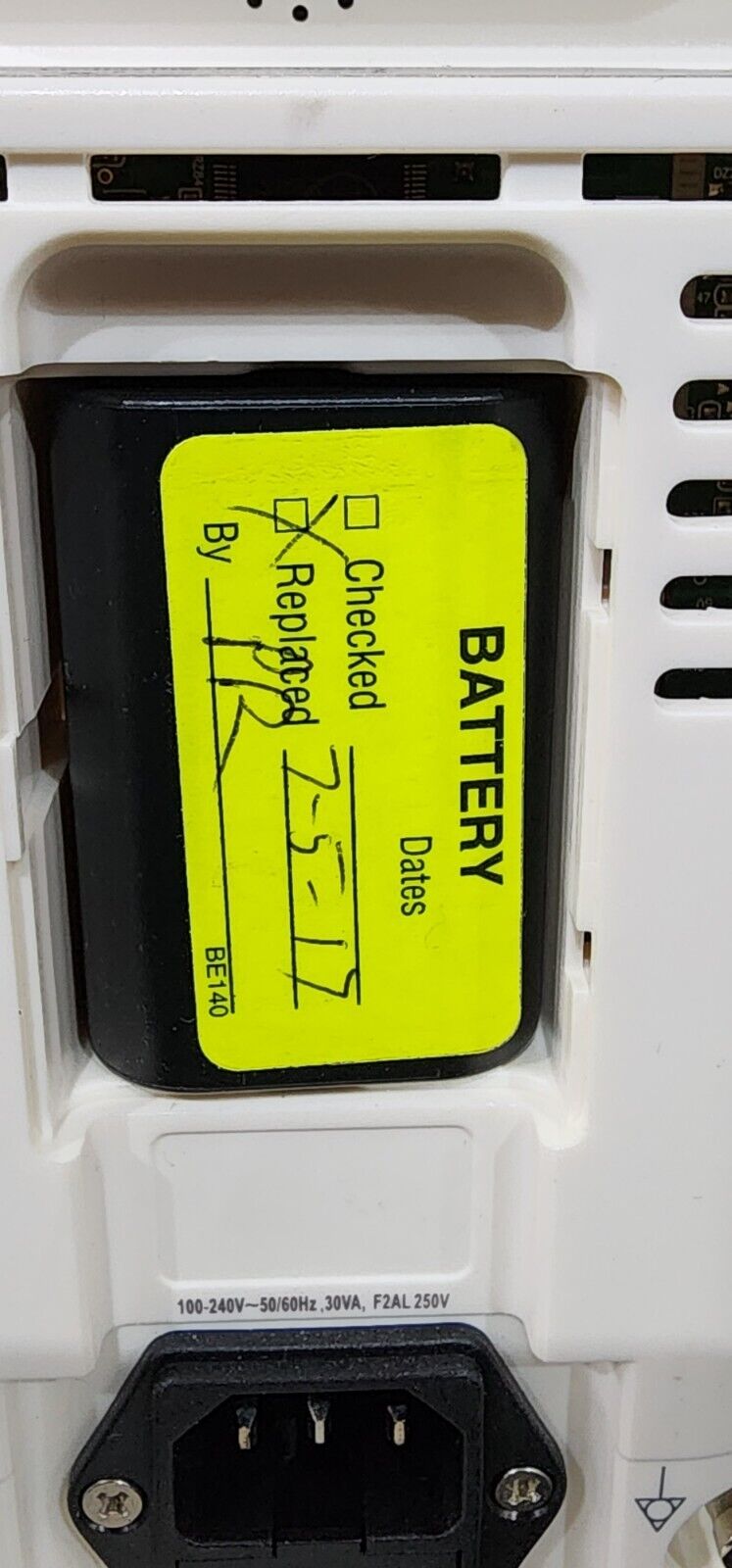

- Battery: Built-in and lithium Ion rechargeable, 12.6V/5Ah
- Charge Time: 8 hours
- Operating Time: 3 hours
Environmental
- Temperature: Operating: 5 ~ 40 °C
- Storage: -10 ~ 45 °C
- Humidity Range: Operating: â¤80 %
- Storage: â¤80 %
FUSE
- 3.15A/250V
LCD
- Display Type: TFT color LCD
- Size (diagonal): 5.0 inch
- Active Area: 152.4 (W) Ã 91.44 (H) mm
- Color arrangement: RGB-stripe
- Dot pitch: 0.0635(W) Ã 0.1905(H) mm
- Display Mode: Normally white, Transmissive
- Interface: Digital (TTL)
- Surface Treatment: Anti-Glare
Touchscreen
- Type: Four-Wire Analog Resistive Touch Panel
- Input Mode: Stylus Pen or Finger
- Connector: FPC
- Insulation resistance: 25MÏ
- Voltage: 7VDC
- Chattering: 10ms
- Transparency: 80%
- Surface hardness: 3H
- Durability-surface scratching: Write 100,000
- Active force: 80gf
- Knock Test: 1,000,000 times
