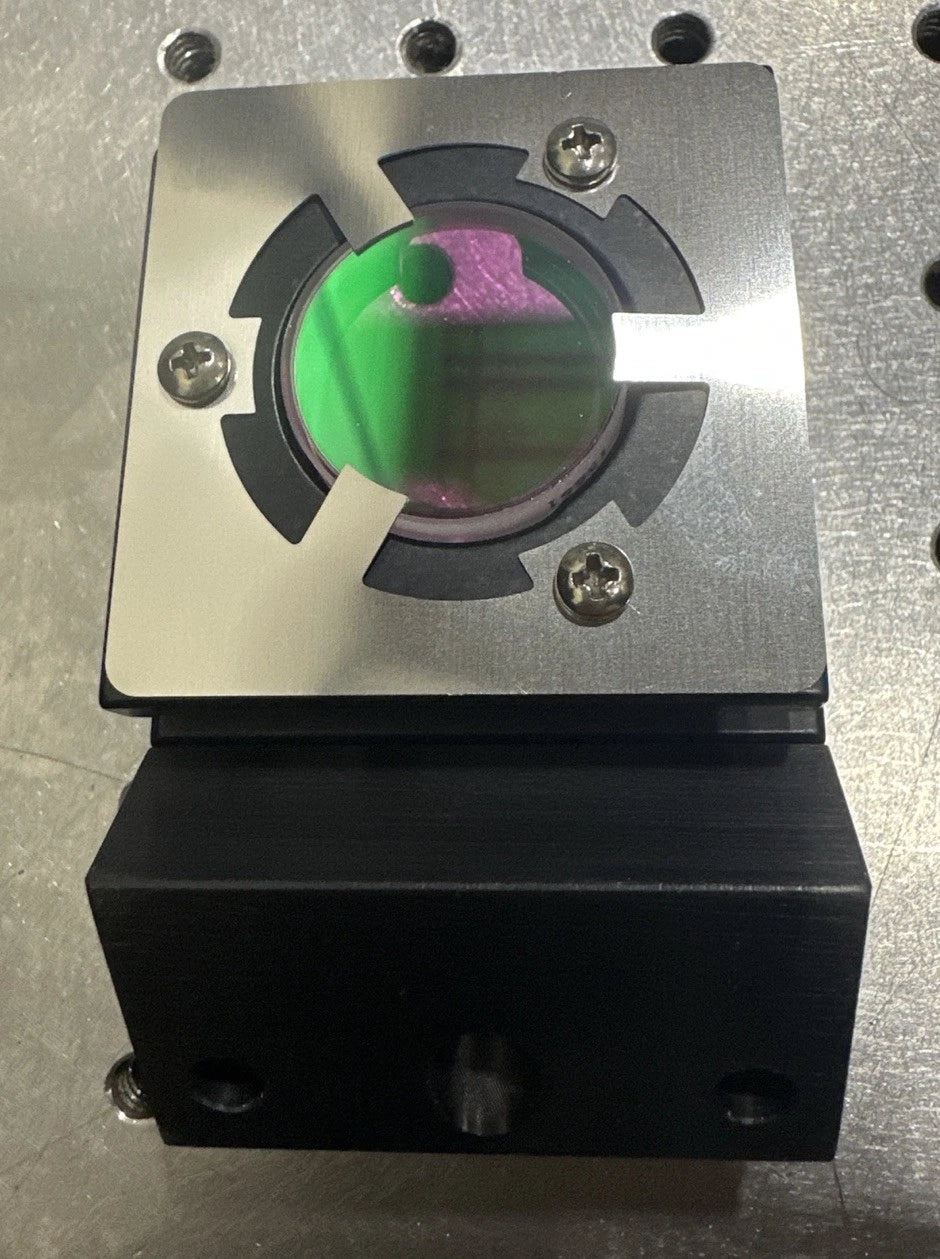

Affymetrix Optical Dichroic Filter Mount Assembly GeneChip Scanner Laser Optics

Precision optical filter mount assembly removed from an Affymetrix GeneChip microarray scanning system. This component contains a dichroic optical filter used to separate excitation laser light from fluorescence emission in laser-based imaging systems.

The assembly includes a black anodized aluminum mounting block, spring-loaded adjustable alignment arms, and the installed coated optical filter element.

Dichroic optics such as this are commonly used in fluorescence detection systems, laser scanners, and microscopy applications.

Features

• Precision optical filter mount

• Installed dichroic filter optic

• Adjustable spring-loaded alignment hardware

• Black anodized aluminum construction

• Removed from laboratory optical instrumentation

Applications

• DNA microarray scanners

• fluorescence imaging systems

• optical laboratory instrumentation

• laser alignment assemblies

Condition

Used surplus component removed from laboratory equipment. Optical element appears intact with no visible cracks. Unit has not been further tested.

Please review all photos for exact condition and included components.

Only the item shown is included.
