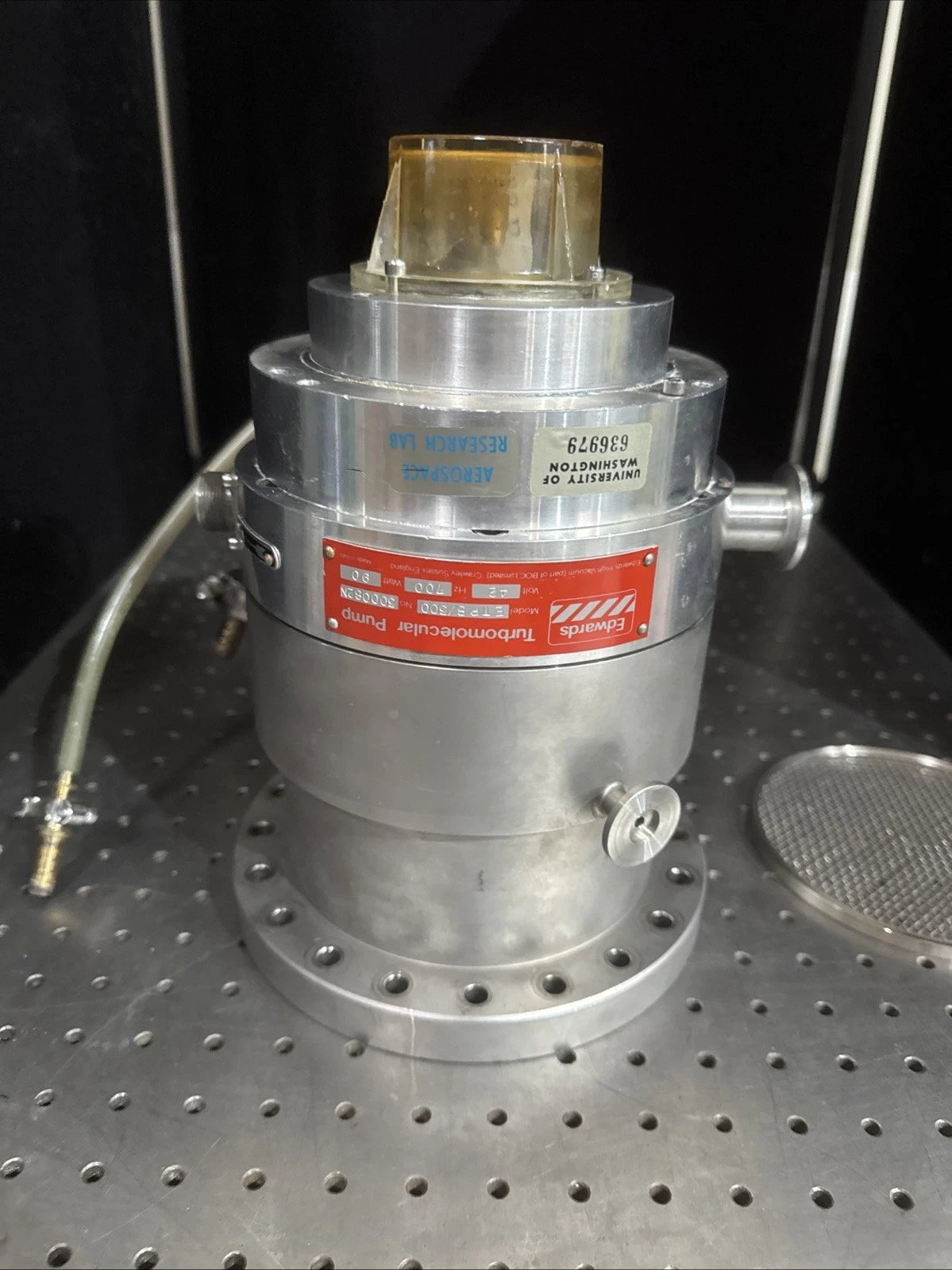

Edwards ETP8/300 Turbomolecular Vacuum Pump Turbo High Vacuum Pump 300 L/s

Edwards ETP8/300 Turbomolecular Vacuum PumpBrand: Edwards Vacuum (formerly BOC Edwards)Model: ETP8/300Pumping Speed: 300 Liters per Second (N₂)Product OverviewThe Edwards ETP8/300 is a high-performance turbomolecular pump designed for high and ultra-high vacuum (UHV) applications. This 300 L/s class pump is a reliable workhorse for laboratory and industrial settings, known for its robust construction and high compression ratios. It is ideal for mass spectrometry, electron microscopy, and general vacuum research. Technical SpecificationsPumping Speed (N₂): 300 L/sInlet Flange: [Select one: ISO100-K / DN100CF / NW Flange]Foreline Flange: NW25 (KF25)Ultimate Pressure: < 5 x 10⁻⁹ mbar (with metal-sealed CF flange)Rotational Speed: ~60,000 RPMCooling: Forced Air or Water (standard)Bearing Type: Hybrid (Ceramic lower bearing / Permanent magnetic upper bearing)Compatibility: Compatible with Edwards TIC or TAG controllers. Key FeaturesHydrocarbon-Free Vacuum: The magnetic upper bearing ensures a clean, oil-free vacuum environment for sensitive applications.Compact Design: Easy integration into existing vacuum systems and mobile pumping carts.Versatile Operation: Can be mounted in any orientation depending on the lubrication type (Grease-lubricated variants are particularly flexible)
