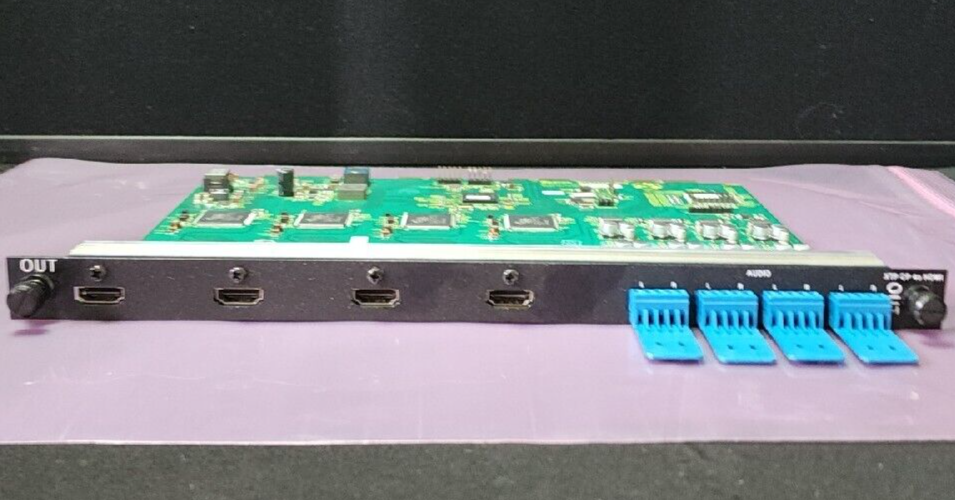

Extron Electronics XTP CP 4o HDMI 70-687-11 #2

Extron Electronics XTP CP 4o HDMI 70-687-11Removed from service in working condition. Comes as you see. Shipped in static free bagInfo taken from manufacturer's web page-The XTP CP 4o HDMI is an XTP output board with four local HDMI and analog audio outputs. Each HDMI port is HDCP-compliant with the ability to force HDCP on the output, regardless of the incoming signal type. Embedded audio or separate analog stereo audio signals are available for distribution. The board can also extract two-channel PCM stereo audio from embedded audio for separate local audio routing. For control of audio levels, the analog audio outputs feature volume adjustment and muting capabilities. Volume control at the output eliminates the need for preamplifiers in many AV systems. As an added feature, the board provides +5 VDC, 250 mA on the HDMI outputs for powering external peripheral devices. The XTP CP 4o HDMI is compatible with XTP input boards.FeaturesFour HDMI outputs with stereo audioSupports computer and video resolutions up to 1920x1200, including 1080p/60 Deep Color and 2KHDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.Automatic cable equalization — Actively conditions incoming signals to compensate for loss when using long cables, low quality cables, or source devices with poor HDMI signal output.Automatic output reclocking — Reshapes and restores timing of digital video signals at each output, eliminating high frequency jitter to ensure reliable transmission over long cables.Multi-channel audio downmixing — The XTP CP 4i HDMI DMA input board provides enhanced audio capabilities with multi-channel to two‑channel audio downmixing for separate audio routing.Audio breakaway enables independent audio and video switching — Provides the capability to break away an audio signal from its corresponding video signal.Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formatsUser-selectable HDCP authorization — Allows individual inputs to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted contentComprehensive EDID management — Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.Video muting control — Video can be muted, allowing the user to control content presentation.Local analog stereo audio inputs and outputs — The four balanced/unbalanced analog audio inputs are digitized to two-channel PCM digital audio for separate audio routing within the system.Audio input gain and attenuation — Allows the level of gain or attenuation to be set for each analog audio input, eliminating noticeable volume differences when switching between sources.Audio output volume adjustment — Eliminates the need for preamplifiers in many AV systems.HDMI to DVI Interface Format Correction — Automatically reformats HDMI source signals for output to a connected DVI display.Automatic color bit depth management — The switcher automatically adjusts color bit depth output based on the display EDID, preventing color compatibility conflicts between source and display.Internal color bars test pattern with or without audio for setup and calibrationProvides +5 VDC, 250 mA power on HDMI outputs for external peripheral devicesHot-swappable — I/O boards can be added or removed without the need to power down the matrix switcher.Compatible with all XTP CrossPoint matrix switcher models — XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and analog formats.Easy setup and commissioning with Extron XTP System Configuration SoftwareJITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.Includes LockIt® HDMI cable lacing brackets

Removed from service in working condition. Comes as you see. Shipped in static free bag

Info taken from manufacturer's web page-

The XTP CP 4o HDMI is an XTP output board with four local HDMI and analog audio outputs. Each HDMI port is HDCP-compliant with the ability to force HDCP on the output, regardless of the incoming signal type. Embedded audio or separate analog stereo audio signals are available for distribution. The board can also extract two-channel PCM stereo audio from embedded audio for separate local audio routing. For control of audio levels, the analog audio outputs feature volume adjustment and muting capabilities. Volume control at the output eliminates the need for preamplifiers in many AV systems. As an added feature, the board provides +5 VDC, 250 mA on the HDMI outputs for powering external peripheral devices. The XTP CP 4o HDMI is compatible with XTP input boards.

Features

• Four HDMI outputs with stereo audio
• Supports computer and video resolutions up to 1920x1200, including 1080p/60 Deep Color and 2K
• HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• Automatic cable equalization — Actively conditions incoming signals to compensate for loss when using long cables, low quality cables, or source devices with poor HDMI signal output.
• Automatic output reclocking — Reshapes and restores timing of digital video signals at each output, eliminating high frequency jitter to ensure reliable transmission over long cables.
• Multi-channel audio downmixing — The XTP CP 4i HDMI DMA input board provides enhanced audio capabilities with multi-channel to two‑channel audio downmixing for separate audio routing.
• Audio breakaway enables independent audio and video switching — Provides the capability to break away an audio signal from its corresponding video signal.
• Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
• User-selectable HDCP authorization — Allows individual inputs to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
• SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted content
• Comprehensive EDID management — Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Video muting control — Video can be muted, allowing the user to control content presentation.
• Local analog stereo audio inputs and outputs — The four balanced/unbalanced analog audio inputs are digitized to two-channel PCM digital audio for separate audio routing within the system.
• Audio input gain and attenuation — Allows the level of gain or attenuation to be set for each analog audio input, eliminating noticeable volume differences when switching between sources.
• Audio output volume adjustment — Eliminates the need for preamplifiers in many AV systems.
• HDMI to DVI Interface Format Correction — Automatically reformats HDMI source signals for output to a connected DVI display.
• Automatic color bit depth management — The switcher automatically adjusts color bit depth output based on the display EDID, preventing color compatibility conflicts between source and display.
• Internal color bars test pattern with or without audio for setup and calibration
• Provides +5 VDC, 250 mA power on HDMI outputs for external peripheral devices
• Hot-swappable — I/O boards can be added or removed without the need to power down the matrix switcher.
• Compatible with all XTP CrossPoint matrix switcher models — XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and analog formats.
• Easy setup and commissioning with Extron XTP System Configuration Software
• JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
• Includes LockIt® HDMI cable lacing brackets
