Edwards ETP8/300 Turbomolecular Vacuum Pump Turbo High Vacuum Pump 300 L/s

$1,850.00
Condition: Used — Working
Edwards ETP8/300 Turbomolecular Vacuum Pump Brand: Edwards Vacuum (formerly BOC Edwards)Model: ETP8/300Pumping Speed: 300 Liters per Second (N₂) Product Overview The Edwards ETP8/300 is a high-performance turbomolecular pump designed for high and ultra-high vacuum (UHV) app...
Request Bulk Quote
SKU: 267226083946
Availability: In Stock

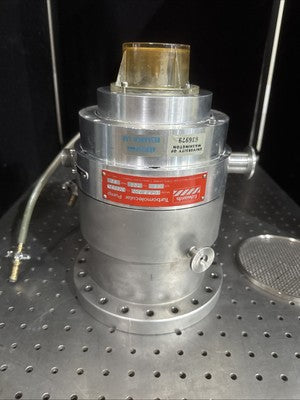

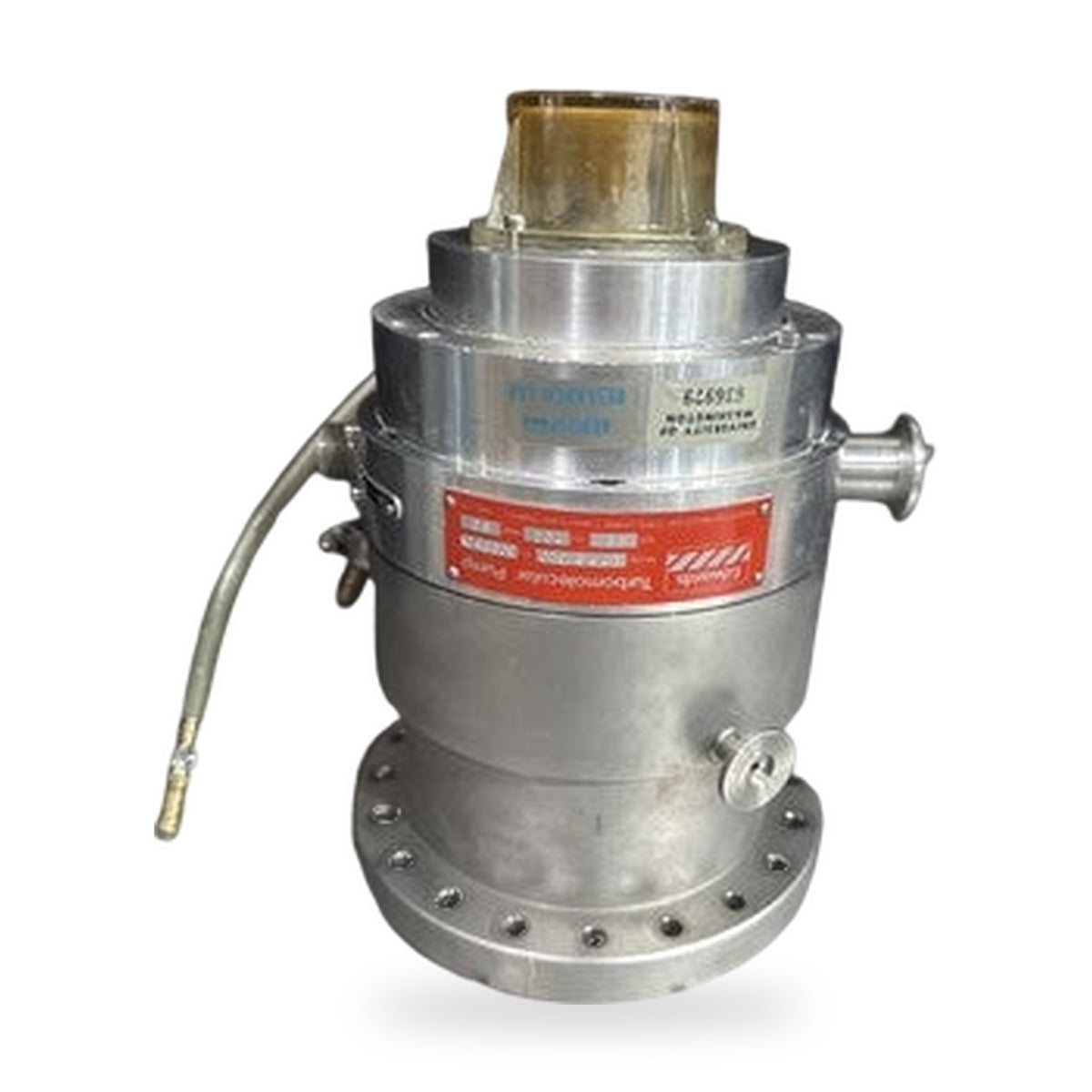

Edwards ETP8/300 Turbomolecular Vacuum Pump
Brand: Edwards Vacuum (formerly BOC Edwards)
Model:
ETP8/300

Pumping Speed: 300 Liters per Second (N₂)
Product Overview
The
Edwards ETP8/300
 is a high-performance turbomolecular pump designed for high and ultra-high vacuum (UHV) applications. This 300 L/s class pump is a reliable workhorse for laboratory and industrial settings, known for its robust construction and high compression ratios. It is ideal for mass spectrometry, electron microscopy, and general vacuum research.
Technical Specifications
  • Pumping Speed (N₂): 300 L/s
  • Inlet Flange: [Select one: ISO100-K / DN100CF / NW Flange]
  • Foreline Flange: NW25 (KF25)
  • Ultimate Pressure: < 5 x 10⁻⁹ mbar (with metal-sealed CF flange)
  • Rotational Speed: ~60,000 RPM
  • Cooling: Forced Air or Water (standard)
  • Bearing Type: Hybrid (Ceramic lower bearing / Permanent magnetic upper bearing)
  • Compatibility: Compatible with Edwards TIC or TAG controllers.
Key Features
  • Hydrocarbon-Free Vacuum: The magnetic upper bearing ensures a clean, oil-free vacuum environment for sensitive applications.
  • Compact Design: Easy integration into existing vacuum systems and mobile pumping carts.
  • Versatile Operation: Can be mounted in any orientation depending on the lubrication type (Grease-lubricated variants are particularly flexible)
Condition Used — Working
SKU 267226083946
Weight 0.0 lb
