Haydon Switch & Instrument Stepper Motor 5VDC 4.6W P36442-05-029

Precision stepper motor actuator assembly manufactured by Haydon Switch & Instrument and used in Affymetrix GeneChip laboratory automation systems. This type of motor is commonly used to control precise linear movement within automated laboratory instruments such as microarray autoloaders.

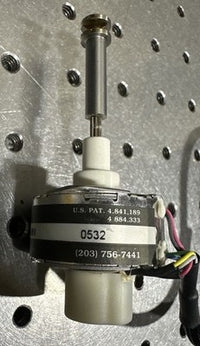

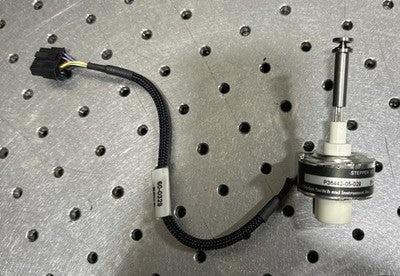

The unit includes the integrated actuator shaft and attached wiring harness as shown in photos.

⸻

Specifications

Manufacturer: Haydon Switch & Instrument, Inc.

Component Type: Stepper Motor / Linear Actuator

Part Number: P36442-05-029

Voltage: 5 VDC

Power Rating: 4.6W

Cable Tag: 60-0329 Rev B

Country of Manufacture: USA

Patent markings on housing:

• US Patent 4,841,189
• US Patent 4,884,333

⸻

Compatibility

This motor assembly was removed from laboratory automation equipment associated with the Affymetrix GeneChip system and may be used in:

• Affymetrix GeneChip Autoloader
• Affymetrix GeneChip Scanner 3000

Buyers should verify compatibility using the part number prior to purchase.

⸻

Condition

Used, in working condition. Laboratory component removed from surplus equipment.

• Good physical condition
• Wiring harness intact

Please review all photos for exact condition and included components.

⸻

Included

• Haydon Switch & Instrument stepper motor assembly
• Integrated actuator shaft
• Attached wiring harness

Only the items shown in photos are included.

⸻

Applications

Commonly used in:

• Laboratory automation equipment
• Precision positioning systems
• Microarray and genomics instrumentation
• Motion control applications

Warehouse Location: 4
