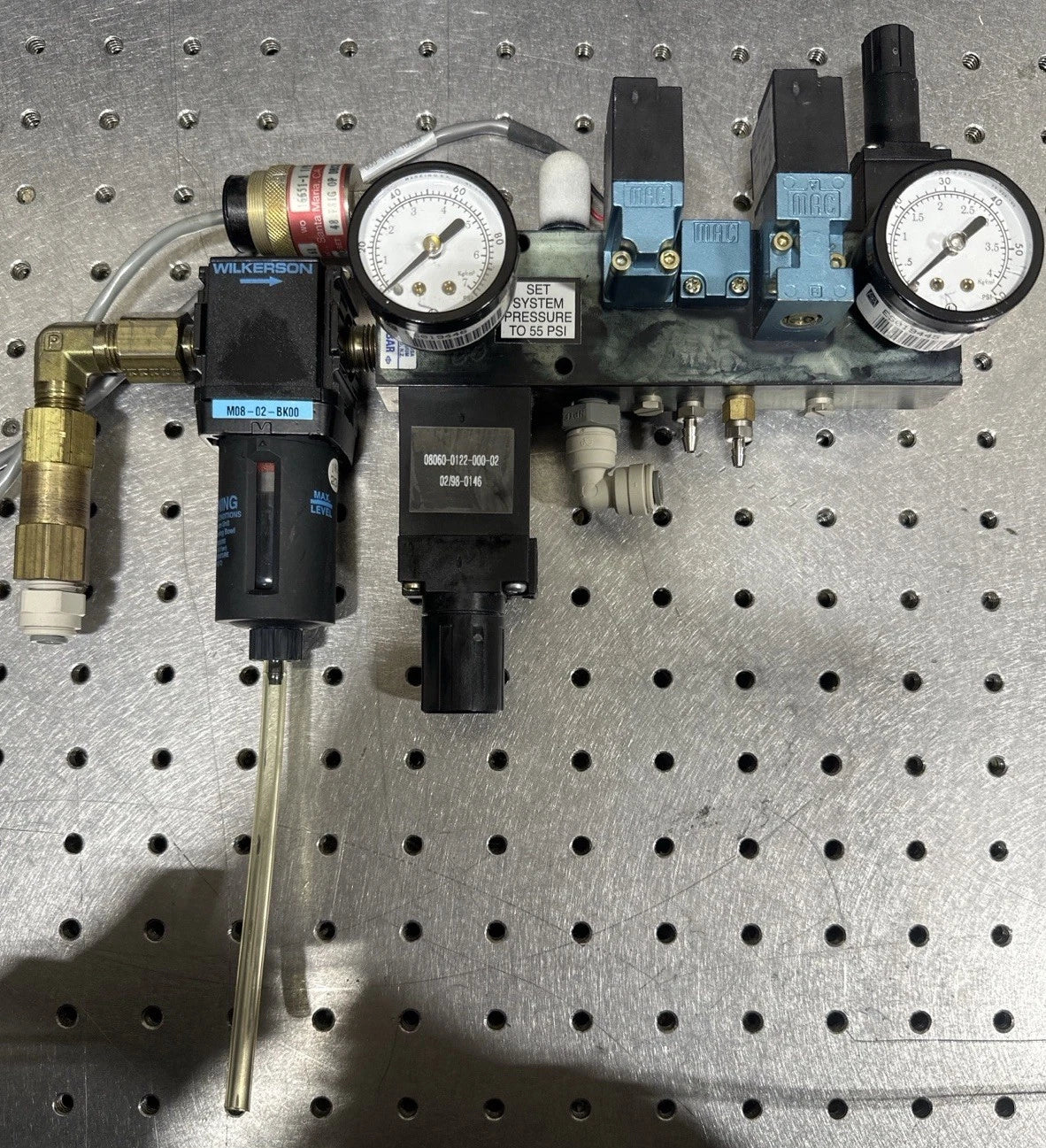

K&S 8060 Pneumatic Manifold Assembly w/ MAC Valves & Wilkerson Regulator

Kulicke & Soffa 8060 Pneumatic Manifold Assembly

K&S Part No: 08060-0122-000-02

Removed from Kulicke & Soffa 8060 wire bonding system.

This is a complete pneumatic control manifold assembly used for regulated air distribution and solenoid control in semiconductor bonding equipment.

⸻

Included Components:

• MAC Valves 35A-BOO-DDBJ-1TJ (12 VDC, VAC to 120 PSI)

• Wilkerson M08-02-BK00 Filter/Regulator Assembly

• Dual Pressure Gauges (0–60 PSI)

• Integrated manifold block

• Installed fittings as shown

• Electrical connectors attached

Label indicates system pressure set to 55 PSI.

⸻

Condition:

• Removed from working K&S 8060 system

• Clean surplus condition

• Normal cosmetic wear from industrial use

• Not tested after removal

• Sold as shown in photos

No additional cables, tubing, or hardware included beyond what is pictured.

⸻

Applications:

• Semiconductor equipment repair

• Wire bonder maintenance

• Industrial pneumatic control systems

• Custom automation projects

⸻

Important Notes:

This is industrial surplus equipment.

Buyer is responsible for compatibility and integration.

No guarantees on calibration or pressure settings.
